Our Products

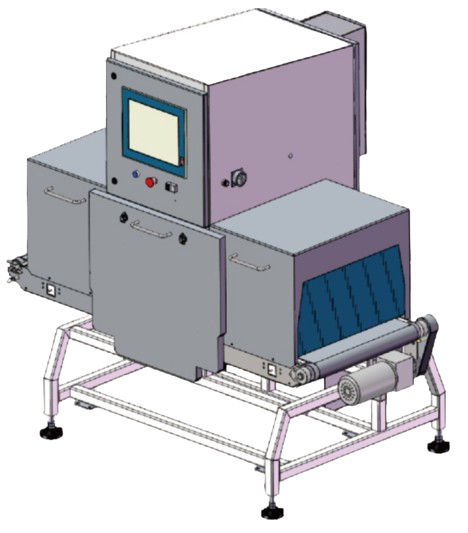

Suitable for large size packed food such as meats, seafoods, snacks, especially for aluminum foil package
FEATURES
- Built in quality, stable and durable components
- Particular graphic processing algorithm which increased contamination detectability
- Ul is based on Windows OS which support multiple languages and easy operation
- Automatic products learning and parameters generation
- Multi-Points security sensor to prevent radiation leakage
- Easy for image files operation and export
- Connecting to various of rejectors
- Fast convey belt release for daily clean
PURPOSE
- Fragment of metal, grass, stone, bone, rubble, plastic detection
- Especially for aluminum foil package detection
- Large tunnel design
SPECIFICATION
|
Model |
XRD-V4015 |
|
Max.Sensitivity |
Fe/SUS ballΦ0.4 SUS wire 0.25 Quartz ball Φ1.5 |
|
Max.Tube voltage |
90kV |
|
Max.Tube current |
5mA |
|
Max.Tube power |
210w |
|
Radiate leakage |
Less than 2uSv/h |
|
HMI |
15Inch touch screen |
|
Belt width |
520mm |
|
Available detection width |
Max 500mm |
|
Recipe memory |
Max 100 |
|
Conveyor payload |
Max 15kg |
|
Rejector type |
Air blast/Pusher/Flap/Drop off |
|
Alarm |
Buzzer/ Light |
|
Power supply |
AC 110/220v,50/60Hz,single phase |
|
Rated power |
Appr.1.5kW |
|
Dimensions |
1790*mm(L)1236mm(W)1837+100mm(H) |
|
Net weight |
350kg |
|
Operation condition |
0~40 degree Celsius, humidity 30~85% (No condensation） |
|
Protection level |
IP66（conveyor） |
|
Body material |
SUS304 |
|
Surface processing |
Mirror/Brushed |
※Sensitive, will be influenced by product density and thickness.
