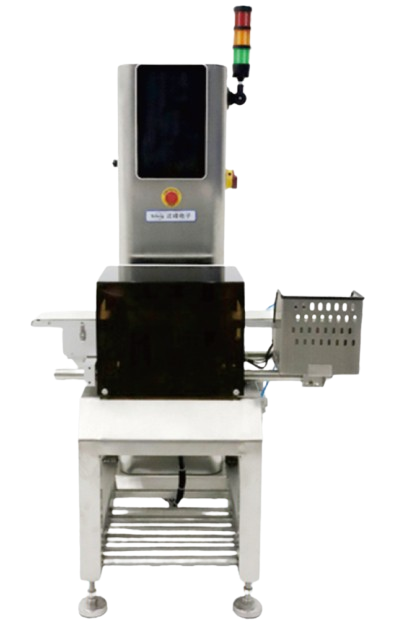

Designed for high speed and high accuracy weighing especially for pharmaceutical industry
FEATURE
- EMFR Loadcell, High speed and accuracy weighing
- High Speed DSP technology
- Automatic product Guide, Zero Tracking and Trend Follow Up
- Metric/Imperial and Normal/EU regulation shift
- 13 inches touch screen with android system which support multiple languages
- Large system memory which supports long term recording, fast seeking and recalling
- Points configurable real-time weight curve display
- Large system memory which supports long term recording, fast seeking and recalling
- Supports graphic based production statistic and analysis
- Equipped with BLDC motor which is performing high speed and low dither
- Records could be export to USB drive (CSV format)
- Data export by enthernet port
- Various rejectors optional
- Tool Free conveyor remove
- SUS304 frame
SPECIFICATION
Model | CWC-H120 | CWC-H150 |
Range (g) | 200g | 500g |
Accuracy (g) | 0.1g | 0.1g |
Platform Size (L*W) | 220*120mm | 280*150mm |
Belt Width | 120mm | 150mm |
Max. Speed | 420ppm | 350ppm |
Rated Power | Appr. 200w | |
Effective Work Size (L*W) | 165*120mm | 240*150mm |
Resolution | 0.05g | |
Loadcell type | Electro-Magnetic Weighing Cell | |
Belt Speed | 20～120m/min | |
Rejector | Air Blast/Pusher | |
Power Supply | AC100～240V,50～60Hz, Single Phase | |
Accessories | Windshield, Signal tower, USB, RS-232, Ethernet | |
※Accuracy and speed depends on product status, form, and tandem space.
