Our Products
Suitable for various of medium and large size packages.
FEATURE
- Equipped with dynamic loadcell and high speed DSP
- Automatic product Guide, Zero Tracking and Trend Follow Up
- Barcode scanner and inkjet optional for automatic recipe shift and print
- Metric/Imperial and Normal/EU regulation shift
- 13 inches touch screen with android system which support multiple languages
- Large system memory which supports long term recording, fast seeking and recalling
- Supports graphic based production statistic and analysis
- Equipped with BLDC motor which is performing high speed and low dither
- Recording could be export to USB drive (CSV format)
- Data export by ethernet port
- Various optional ejectors
- Tool Free conveyor remove
- Rejection feedback, air pressure monitor, fill up detection and locked bin optional
- SUS304 frame with height adjustable
SPECIFICATIONS
|

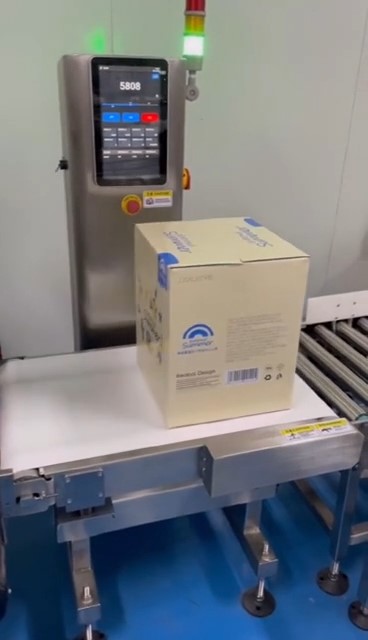

Model |
CWC-M3-400 |
|
Range (g) |
50~5500g |
|
Accuracy (g) |
3g |
|
Platform Size (L*W) |
600mm*400mm |
|
Belt Width |
400mm |
|
Max. Speed |
140ppm |
|
Rated Power |
140w |
|
Effective Work Size (L*W) |
400*600mm |
|
Resolution |
1g |
|
Loadcell type |
Strain-Gauge |
|
Belt Speed |
20～100m/min |
|
Rejector |
Pusher |
|
Power Supply |
AC100～240V,50～60Hz, Single Phase |
|
Accessories |
Windshield, Signal tower, USB, RS-232, Ethernet |
|

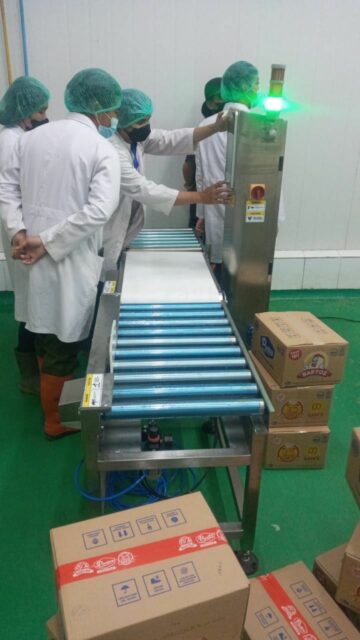

Model |
CWC-M3-450 |
|
Range (g) |
60~20000g |
|
Accuracy (g) |
6g |
|
Platform Size (L*W) |
700*450mm |
|
Belt Width |
450mm |
|
Max. Speed |
70ppm |
|
Rated Power |
170w |
|
Effective Work Size (L*W) |
450*650mm |
|
Resolution |
1g |
|
Loadcell type |
Strain-Gauge |
|
Belt Speed |
8～47m/min |
|
Rejector |
Roller conveyor with Pusher |
|
Power Supply |
AC100～240V,50～60Hz, Single Phase |
|
Accessories |
Windshield, Signal tower, USB, RS-232, Ethernet |
※Accuracy and speed depends on product status, form and tandem space.
|

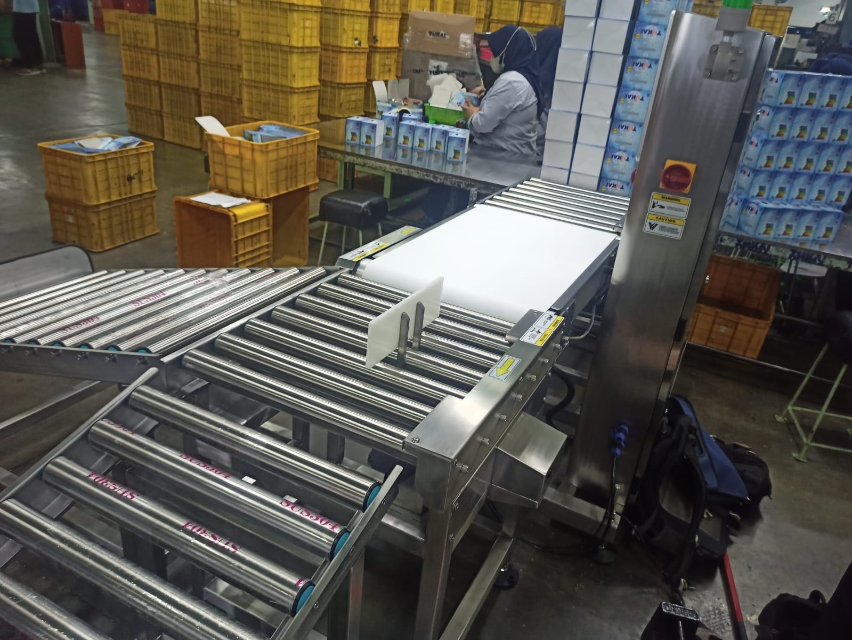

Model |
CWC-M3-500 |
|
Range (g) |
60~30000g |
|
Accuracy (g) |
10g |
|
Platform Size (L*W) |
1000*500mm |
|
Belt Width |
500mm |
|
Max. Speed |
60ppm |
|
Rated Power |
300w |
|
Effective Work Size (L*W) |
800*500mm |
|
Resolution |
1g |
|
Loadcell type |
Strain-Gauge |
|
Belt Speed |
8～45m/min |
|
Rejector |
Roller conveyor with Pusher |
|
Power Supply |
AC100～240V,50～60Hz, Single Phase |
|
Accessories |
Windshield, Signal tower, USB, RS-232, Ethernet |
|
Model |
CWC-M3-600 |
|
Range (g) |
60~30000g |
|
Accuracy (g) |
15g |
|
Platform Size (L*W) |
1000*600mm |
|
Belt Width |
600mm |
|
Max. Speed |
50ppm |
|
Rated Power |
300w |
|
Effective Work Size (L*W) |
950*600mm |
|
Resolution |
1g |
|
Loadcell type |
Strain-Gauge |
|
Belt Speed |
8～45m/min |
|
Rejector |
Roller conveyor with Pusher |
|
Power Supply |
AC100～240V,50～60Hz, Single Phase |
|
Accessories |
Windshield, Signal tower, USB, RS-232, Ethernet |
